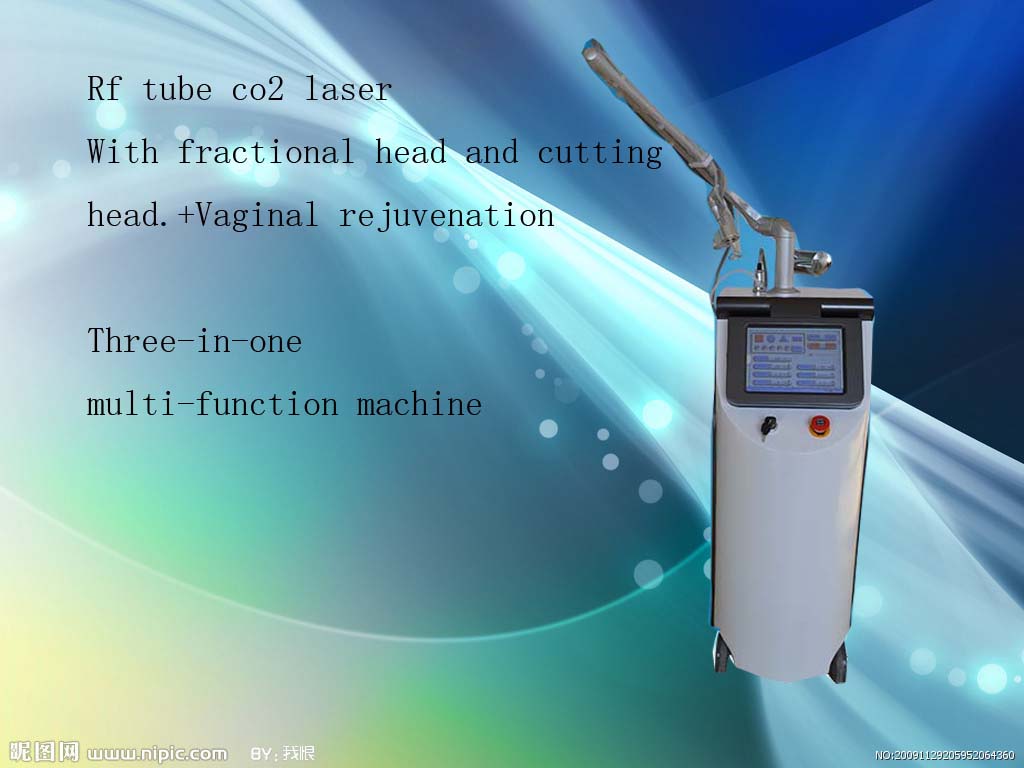

Advanced Co2 Fractional Laser Machine , Co2 Fractional Laser
Stretch Marks Beauty Equipment
CO2 Fractional laser is the most advanced conceptual fractional CO2
skin peeling laser system with a wavelength of 10600nm. In addition
to its fine skin-peeling effect, it can effectively penetrate the
laser beam into the dermis . It is the most beneficial skin
recovery system and can achieve the long-term effect of collagen
remodeling as well as improvement of aged skin conditions due to
exposure to light. It can be very safely applied to various types
of scars compared to the existing 100% total layer skin peeling
lasers (CO2 or Er: YAG). In addition, it does not require a long
period of recovery or side effects. It can remodel various types of
deformed scars and skin tissue very effectively.
Advantage of co2 laser fractional in dermatology
1.USA radio frequency laser, high quality and excellent
performance, long life
2.Smaller focal spot, stronger penetration and powerful output
energy
3.8 or 10 large touch- screen, smart operation system
4.Excellent treatment results, not affect people's normal life and
study
Technical Specification of CO2 Fractional Laser
Application of co2 laser fractional in dermatology
Application of Ablation laser resurfacing:
CO2 fractional laser for skin tightening , fractional skin
resurfacing , Skin renewing, wrinkle removal, whitening , pore
minimization ;
Acne scar removal one surgery , Smooth burnt scars and surgery
scars, dermabrasion , Remove intractable chloasmas and
pigmentation; etc
Application of co2 laser fractional in dermatology :
in aesthetic surgery .it is mainly used for cutting on
blepharoplasty , skin tags and ingrown nails , compound nevus and
intra dermal nevus etc
| Laser apparatus | Carbon Dioxide fractional(fraxel) laser /Metal RF tube |
| Laser mode: | 30W |
| Power | 30W |
| Max power intensity | 75, 000 W / cm² |
| Radiation time | 0.01 1 sec |
| Aiming beam | Less than 2mW, 635nm red semiconductor laser |
| Condenser focus | f=100mm |
| Pulse energy | 10mj to 100mj is optional for each dot. |
| Wavelength : | 10600nm |
| Laser Work mode | Ultra pulse ,fractional CW |
| Output way | Fractional beam& scan beam |
| Cooling system | Wind cooling with treatment head. Water cooling with machine (glass
tube ) |
| Dot number | at max 2000 dots (glass) at max 3000 dots (radio frequency ) |
| Scan mode | Random, sequence, convergence , diagonal even/oddetc |
| Scan Graphics | Square ,circle ,rectangular ,triangle ,line, and any customized
graphics |
| Spot distance(pitch) | 0.12-1.25mm(adjustable) |
| Spot size | 0.2mm |
| Penetrate depth | 2mm |
| Pulse duration | 0.1-20ms for optional |
| overlay | 1 to 20 times |
| Transmission system(Beam delivery ) | Articulated arm with 7 mirrors |
| Display | 10.4 inch big color touch screen |
| Dimension | 57cm(L)*50cm(W)*125cm(H) |
| Power supply | 220V 50HZ , 110V 60HZ |
| Weight | 51KG |
